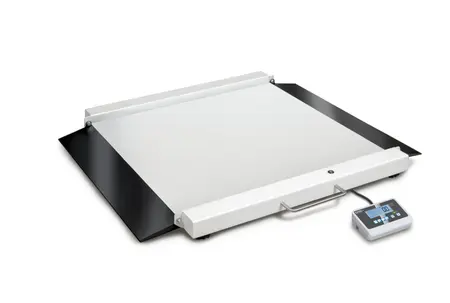

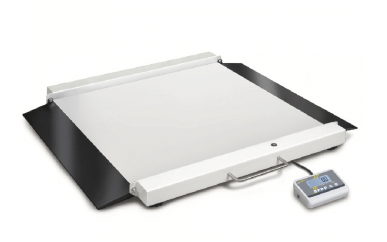

Kern MWA Wheelchair Scale

Wheelchair platform scale with two integrated access ramps for easy access – with EC type approval class III and approval for professional, stationary medical use in medical diagnostics.


  • Class III verification
  • Approved as a medical device according to 93/42/EEC
  • Especially suitable for weighing patients in wheelchairs, the low-profile platform can be approached from either side using the two built-in access ramps
  • Optional Handrail
  • Ergonomical, robust design with a large, non-slip surface
  • Dynamic Weight Filtering to obtain a stable weight from moving patients
  • Tare Function for empty wheelchairs to easily show only the patients weight
  • BMI function to determine underweight / normal weight / surplus weight
  • Battery or mains-powered (rechargeable battery optional)
  • Capacity: 300kg

Technical Data

  • Backlit LCD display, digit height: 25mm
  • Display Dimensions: 200mm x 55mm x 128mm
  • Overall Weighing Plate Dimensions: W 995mm x D 945mm x H 40mm
  • Actual Weighing Surface: W 880mm x D 840mm
  • Optional Handrail Height: 94cm
  • Battery Operation: 6 x 1.5V AA batteries (not included) (rechargeable batteries optional)
  • Battery Operating Time: up to 20h
  • Mains adapter (external) included
  • Net weight: approx. 76kg
  • Capacity: 300kg
