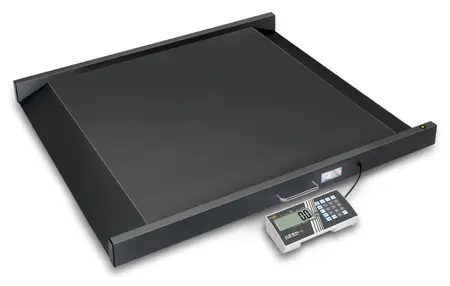

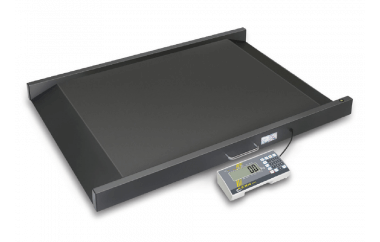

Kern MWS Bariatric Scale

Wheelchair platform scale with low overall height for easy access – with EC type approval class III and approval for professional, mobile medical use in medical diagnostics.


  • Class III verification
  • Approved as a medical device according to 93/42/EEC
  • Especially suitable for weighing patients in wheelchairs, the low-profile platform can be approached from either side
  • Tare Function for empty wheelchairs to easily show only the patients weight
  • Secure and non-slip positioning with height-adjustable rubber feet
  • Optional handrail
  • Hold function: When patients are not completely still, a stable weight is calculated using an average weight. this is then “frozen” meaning you have sufficient time to attend to the patient first and record the weight later
  • BMI function to determine underweight / normal weight / surplus weight
  • Wheelchair platform scale can be converted quickly and easily into a multi-function scale. Patients can be weighed standing up on their own, using the support of the handrail or in a wheelchair
  • Battery or mains-powered (rechargeable battery optional)

Technical Data

  • Backlit LCD display, digit height: 25 mm
  • Display Dimensions: 210mm x 110mm x 50mm
  • Weighing Plate Dimensions (300kg): W 1155mm x D 800mm x H 66mm
  • Weighing Plate Dimensions (400kg): W 1255mm x D 1060mm x H 69mm
  • Actual Weighing Surface (300kg): 900mm x 740mm
  • Actual Weighing Surface (400kg): 1000mm x 1000mm
  • Optional Handrail Height: 900mm
  • Battery Operation: 6 x 1.5V AA batteries (not included) (rechargeable battery optional)
  • Battery Operating Time: up to 50h
  • Mains adapter (external) included
  • Net weight: approx. 28kg
  • Capacity Options: 300kg or 400kg
