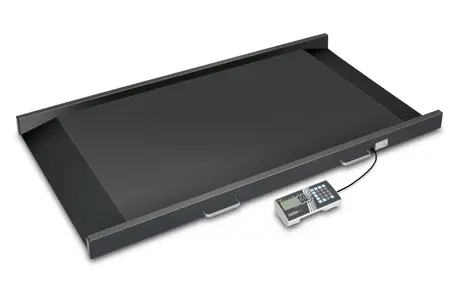

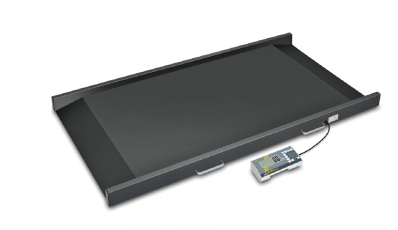

Kern MWS-L Stretcher Scale

Stretcher scale with an ultra low overall height and easy access built-in ramps – with EC type approval class III and approval for medical use.


  • Class III verification
  • Approved as a medical device according to 93/42/EEC
  • Two built-in Access Ramps
  • Due to its large dimensions and large weighing range, it is especially suitable for weighing immobile patients on stretchers or wheelchairs
  • Optional 3-Sided Handrail
  • Ergonomical, robust design with a large, non-slip surface
  • Automatic Hold for moving or restless patients
  • BMI function to determine underweight / normal weight / surplus weight
  • Battery or mains-powered (rechargeable battery optional)
  • Capacity: 300kg

Technical Data

  • Backlit LCD display, digit height: 25 mm
  • Display Dimensions: 210mm x 110mm x 50mm
  • Overall Weighing Plate Dimensions: W 1500mm x D 860mm x H 68mm
  • Actual Weighing Surface: 1200mm x 800mm
  • Battery Operation: 6 x 1.5V AA batteries (not included) (rechargeable batteries optional)
  • Battery Operating Time: up to 45h
  • Mains adapter (external) included
  • Net weight: approx. 28kg
  • Capacity: 300kg
