Forklift-Guide Platform Scale

The UK-made VWFG is a unique, portable, heavy-duty weighing solution. Built-in forklift guides allow the platform to be quickly and easily picked up and moved to another location, providing flexibility to weigh wherever it is needed.

Renowned for it’s impressive design and build quality, it is one of the strongest and most durable platform scales available. All models have OIML approved, IP67 loadcells with a capacity of up to 5,000kg as standard (higher capacities available on request) guaranteeing accurate and reliable weighing in the harshest of environments.

Every model can be customised to meet specific requirements such as custom fork width/spacings, dimensions, capacity, colour and mounting frames. All models feature a stainless junction box and a highly durable powder-coated finish.

BACK
Platform weighing scale with forklift guides

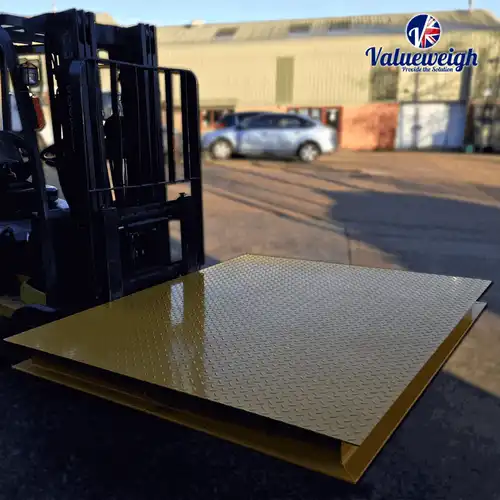

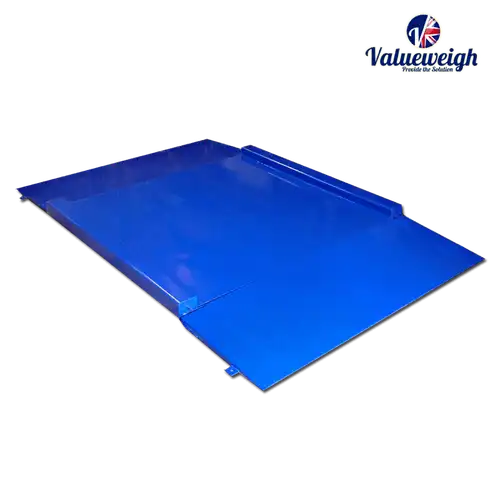

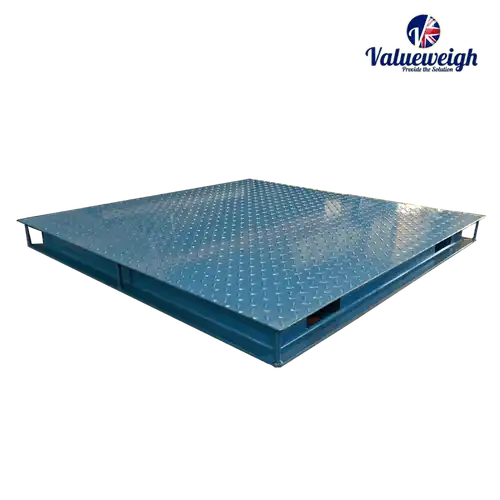

Platform weighing scale with guides for forklift truck Mild steel platform weight scale for forklift truck Mild steel platform weighing scale with forklift guides
  • 2 year manufacturer's warranty
  • UK made to the highest quality standards
  • Portable with built in forklift guides - any width/size
  • Extra heavy duty design - built to last
  • Extra tough powder-coated mild steel construction
  • IP67 stainless steel OIML approved loadcells
  • Fully customisable - size, colour, capacity etc
  • Various standard sizes and capacities
  • Custom sizes and capacities available

Fork-Guide Platform Scale Models

Model Dimensions
VWFG1212 1250mm x 1250mm
VWFG1512 1500mm x 1250mm
VWFG1515 1500mm x 1500mm
VWFG1812 1800mm x 1250mm
VWFG1815 1800mm x 1500mm
VWFG2115 2100mm x 1500mm

Specifications

Capacity Options 1000kg, 1500kg, 2000kg, 3000kg, 5000kg (Other capacity options available on request)
Platform Height Approx. 140mm to Weighing Area
Construction Mild steel with durbar/checker top plate (Smooth plate optional)
100 x 50 x 5 PFC frame on-side with 4.5mm top plate
Enclosed forklift channel guides
Finish Professional tough powder-coated finish
Loadcells 4 off Flintec OIML approved IP67 rated stainless steel loadcells
Cable 5m of high quality cable with steel armoured braiding
Feet Height adjustable stainless steel rubber based mounting feet
Junction Box Stainless steel sealed junction box and summing board
