Mild Steel Platform Scale

The UK-made VW mild steel platform scale has been firmly established at the forefront of UK industrial weighing for over 25 years. The platform’s proven design and impressive build quality, along with it’s OIML approved IP67 waterproof stainless steel loadcells, guarantee long lasting, accurate and reliable weighing performance.

The VW range is designed and built to order in the UK and as such can be customised to satisfy almost any requirement including custom dimensions, capacity, colour, smooth top plate, ramps or in-ground/dormant applications with pit frames and removable top plates.

All models feature stainless height adjustable feet, a sealed stainless junction box and a tough and highly durable powder-coated finish and are backed by a full 2 year warranty.

BACK
  • UK-made platform scale
  • Robust and high quality
  • Tough powder-coated mild steel construction
  • Fully customisable - size, colour, capacity
  • OIML approved loadcells
  • IP67 Stainless Flintec SLB Loadcells
  • J-Box and Summing Board
  • Free standing, pit mounted or with up to 4 ramps
  • Max Capacity: 3,000kg
  • 2 year warranty
Mild steel platform weighing scale

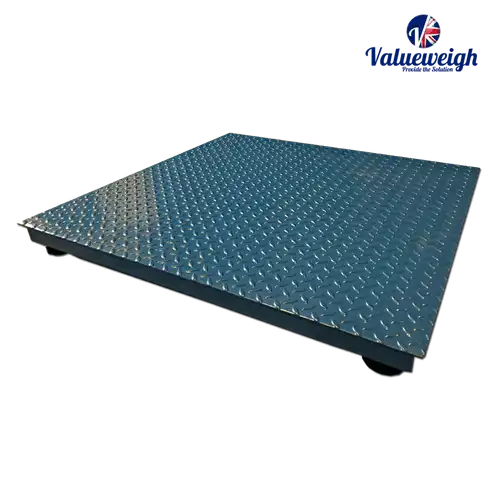

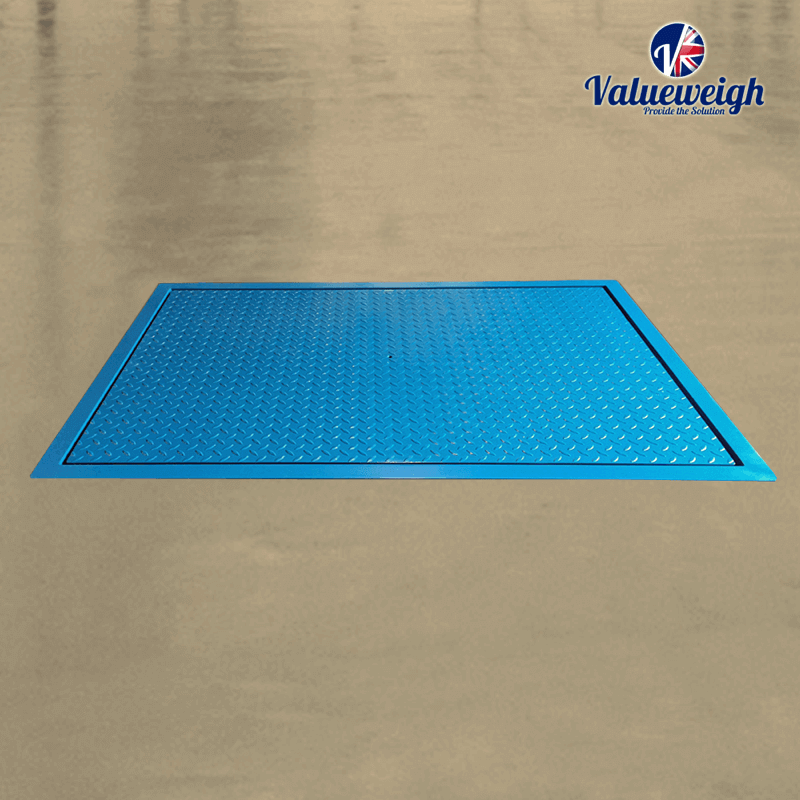

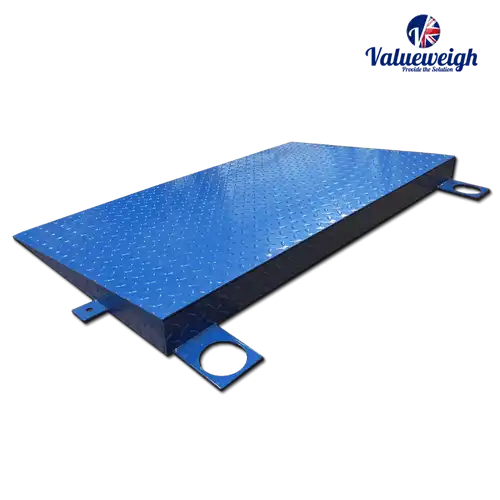

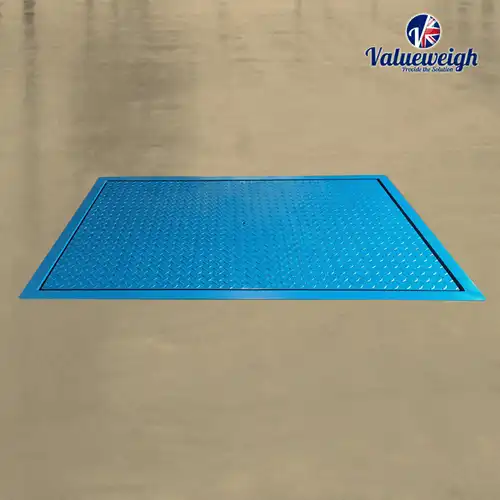

Pit-mounted mild steel platform scale Fully customisable mild steel platform scale Fully customisable mild steel platform scale Fully customisable mild steel platform scale Mild steel platform scale with ramps Mild steel platform scale with ramps

Mild Steel Platform Scale Models

Model Dimensions *
VW600 600mm x 600mm
VW800 800mm x 800mm
VW1010 1000mm x 1000mm
VW1210 1250mm x 1000mm
VW1212 1250mm x 1250mm
VW1512 1500mm x 1250mm
VW1515 1500mm x 1500mm
* Other custom dimensions available on request

Specifications

Capacity Options 150kg, 300kg, 600kg, 1000kg, 1500kg, 2000kg, 3000kg (Higher capacity options available on request)
Platform Height Approx. 80mm to Weighing Area
Construction Mild steel with durbar/checker top plate
(Smooth plate optional)
100 x 50 x 5 PFC frame laid flat with 4.5mm durbar top plate
Finish Professional tough powder-coated finish
Loadcells 4 off Flintec OIML approved IP67 rated stainless steel loadcells
Cable 5m of high quality cable with steel armoured braiding
Feet Height adjustable stainless steel rubber based mounting feet
Junction Box Stainless steel sealed junction box and summing board
