Stainless / Mild Steel U-Shape Pallet Scale

The UK-made VWU U-Shape Pallet Weighing Scale is ideal for warehouses and factories with pallet trucks. With nylon roller wheels and lifting handles as standard, the VWU is easily transportable to different weighing locations when required.

All models feature OIML approved stainless steel loadcells, the VWU loadcells are IP67 rated and the VWUS stainless model has IP69 rated loadcells, making it ideal for use in wet and hygienic conditions such as food factories or production areas.

The VWU range come with a 2 year manufacturer’s warranty and are one of the most reliable and durable U-Shape scales available.

BACK
  • UK made to the highest quality standards
  • Highly portable with lifting handle & nylon rollers
  • Stainless or mild steel construction
  • Powder coated finish
  • Low profile design
  • IP67 or IP69 rated and OIML approved stainless steel loadcells
  • J-Box and Summing Board
  • 2 year warranty
  • Max Capacity: 2000kg
  • Custom sizes and capacities available

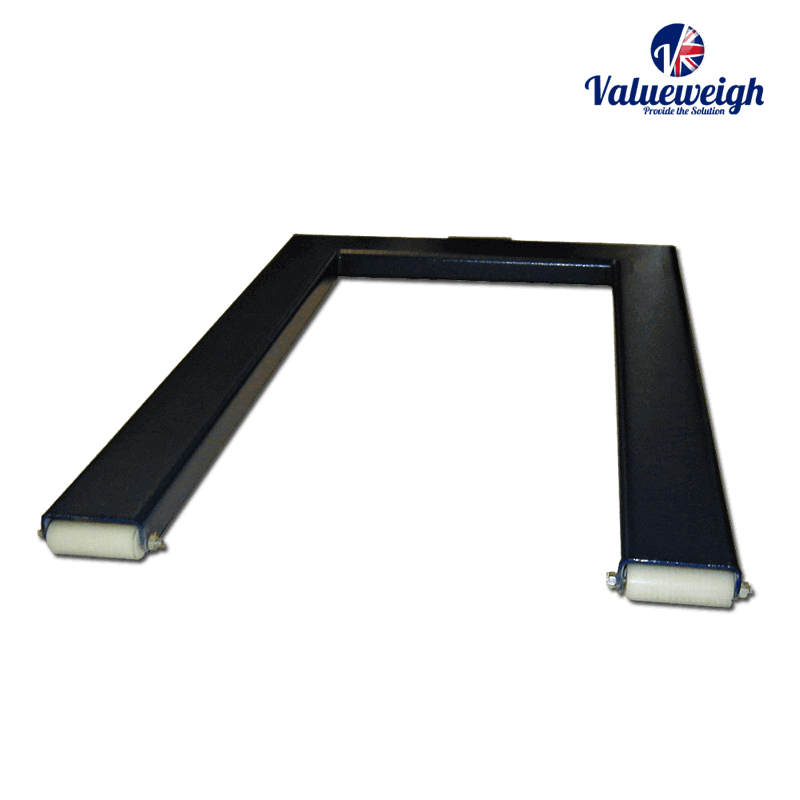

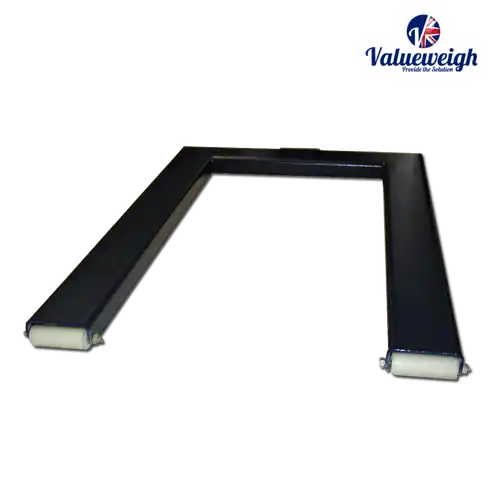

U-shaped platform scale for warehouses and factories

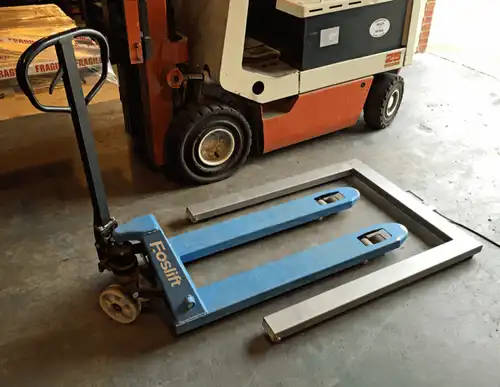

Easily transportable, hygienic u-shaped scale for weighing pallets U-shaped scale ideal for warehouses and factories with pallet trucks Transportable u shaped scale for weighing pallets

U-Shape Pallet Scale Models

Mild Steel Model Stainless Model Dimensions *
VWU1008 VWUS1008 1000mm x 800mm
VWU1010 VWUS1010 1000mm x 1000mm
VWU1210 VWUS1210 1200mm x 1000mm
VWU1212 VWUS1212 1200mm x 1200mm
* Other custom dimensions available on request

Specifications

Capacity Options 150kg, 300kg, 600kg, 1000kg, 1500kg, 2000kg
(Higher capacity and other capacity options available on request)
Platform Height Approx. 80mm to Weighing Area
Construction VWU: Powder Coated Mild Steel with Lifting Handle and Nylon Roller Wheel
VWUS: Bead Blasted 304 Stainless Steel with Lifting Handle and Nylon Roller Wheel
Loadcells VWU: 4 off Flintec OIML approved IP67 rated SLB14 stainless steel loadcells
VWUS: 4 off Flintec OIML approved IP69 rated SB14 stainless steel loadcells
Cable 5m of high quality cable with steel armoured braiding
Feet Food grade height adjustable stainless rubber based mounting feet
Junction Box Stainless steel sealed junction box and summing board
