Stainless Steel Mobile Drive-In Platform Scale
With its high quality, fully stainless construction and IP69 rated loadcells, the highly portable MODI (Mobile Drive-In) platform scale complies to GMP and HACCP production standards and is ideal for harsh, wet and sanitary environments where hygienic cleaning is vital.

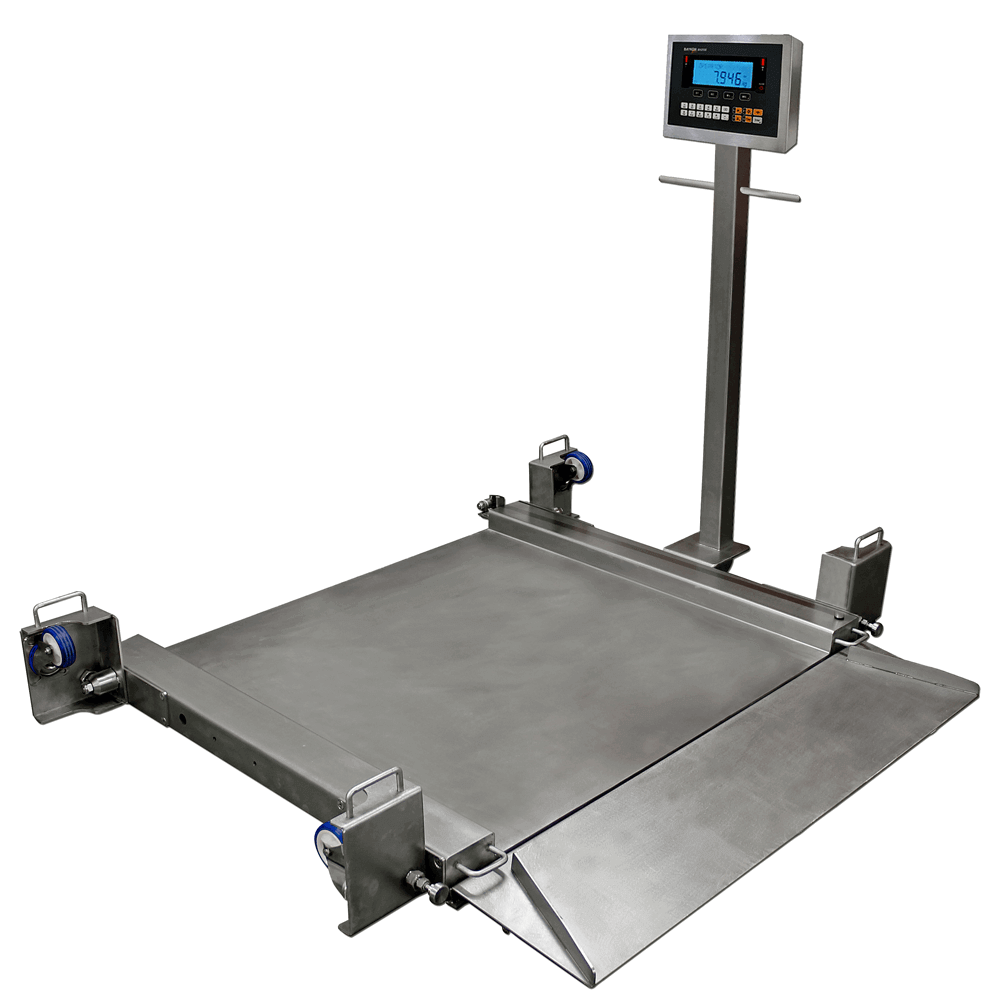

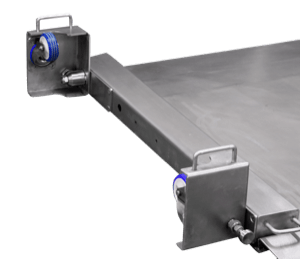

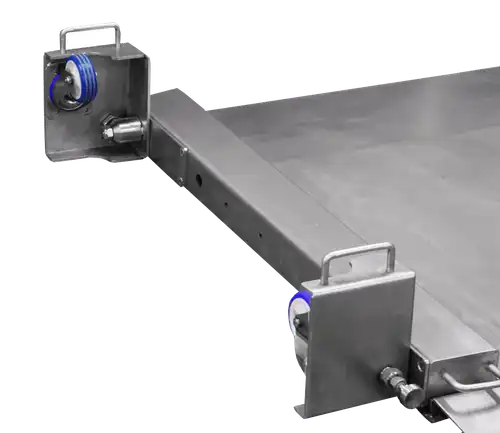

The OIML approved MODI platform scales have 4 folding stainless brackets that effortlessly rotate to lift it onto wheels for easy transit. The platform scale comes complete with a steering handle mounted on a convenient column and a removeable easy access ramp. A premium quality and robust build makes the platform scale ideal for Pharma, food production, cosmetics and other high hygiene factory conditions.
Dimensions range from 850mm to 1500mm and capacities from 300kg to 3000kg.
MODI Platform Scale -- Features
- Premium quality manufacturing
- Unique portable design with 4 wheels
- Fully stainless steel washdown construction
- IP69 rated, OIML approved loadcells
- Ultra smooth processed surface for hygiene
- Supplied with column and easy access ramps
- Ramp Length - 300mm
- Low Profile - 45mm High
- 12 month warranty
- Various standard sizes and capacities
MODI Platform Scale -- Models & Specifications
| Model | Dimensions |
|---|---|
| MODI8585 | 850mm x 850mm |
| MODI1010 | 1000mm x 1000mm |
| MODI1212 | 1250mm x 1000mm |
| MODI1512 | 1500mm x 1250mm |
| MODI1515 | 1500mm x 1500mm |
| Capacity Options | 100kg, 150kg, 300kg, 600kg, 1000kg, 1500kg, 2000kg, 3000kg |
|---|---|
| Construction | 304 grade stainless steel with ultra smooth finish. Seamless frame with 5mm top plate, laminated base and a mobile kit to lift scale for easy manoeuvrability |
| Finish | Professional - dirt trap free - ultra smooth processed finish |
| Loadcells | 4 off Flintec OIML approved IP69 rated loadcells |
| Cable | 5m of high quality cable with steel armoured braiding |
| Feet | Stainless steel mounting feet |
| Junction Box | Stainless steel sealed junction box and summing board |
| Ramp | Supplied with one stainless ramp |
Contact Midweigh to discuss your specific requirements
