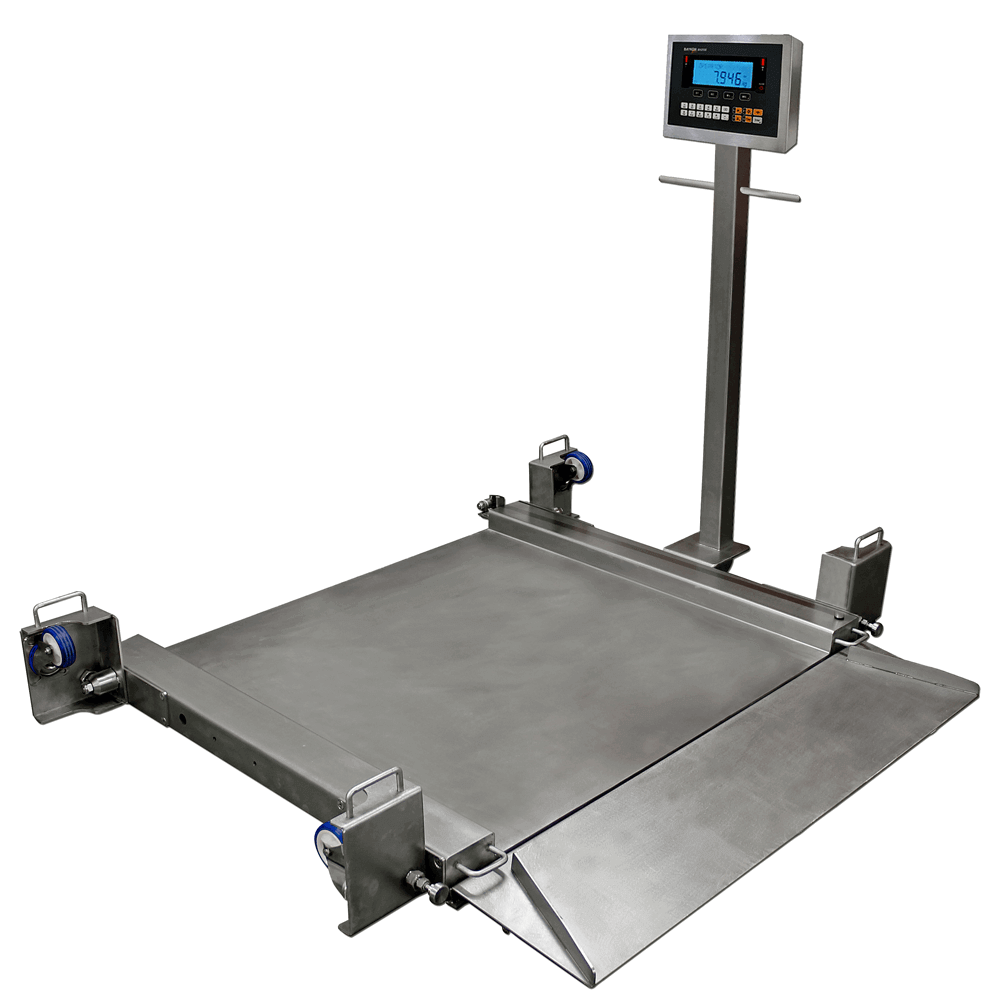

Stainless Steel Mobile Drive-In Platform Scale

With its high quality, fully stainless construction and IP69 rated loadcells, the highly portable MODI (Mobile Drive-In) platform scale complies to GMP and HACCP production standards and is ideal for harsh, wet and sanitary environments where hygienic cleaning is vital.

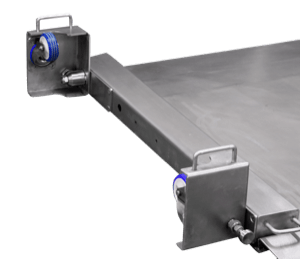

The OIML approved MODI platform scales have 4 folding stainless brackets that effortlessly rotate to lift it onto wheels for easy transit. The platform scale comes complete with a steering handle mounted on a convenient column and a removeable easy access ramp. A premium quality and robust build makes the platform scale ideal for Pharma, food production, cosmetics and other high hygiene factory conditions.

Dimensions range from 850mm to 1500mm and capacities from 300kg to 3000kg.

BACK
  • Premium quality manufacturing
  • Unique portable design with 4 wheels
  • Fully stainless steel washdown construction
  • IP69 rated, OIML approved loadcells
  • Ultra smooth processed surface for hygiene
  • Supplied with column and easy access ramps
  • Ramp Length - 300mm
  • Low Profile - 45mm High
  • 12 month warranty
  • Various standard sizes and capacities
  • SEE PDF FOR MORE DETAILS -
Stainless mobile drive-in platform scale for high hygiene factory conditions

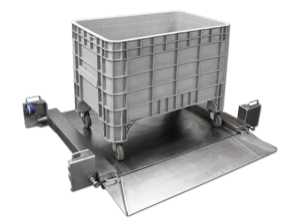

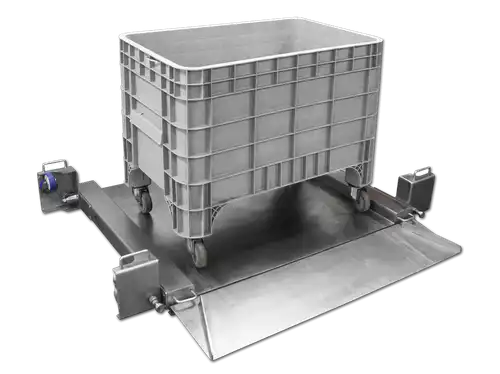

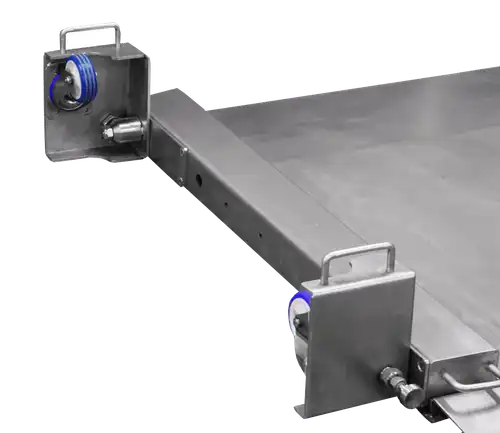

Mobile drive-in platform scale Stainless mobile drive-in scale Mobile drive-in scale with ramp and display column Platform scale ideal for pharma, food production and cosmetics industries

Stainless Mobile Drive-In Platform Scale Models

Model Dimensions
MODI8585 850mm x 850mm
MODI1010 1000mm x 1000mm
MODI1212 1250mm x 1000mm
MODI1512 1500mm x 1250mm
MODI1515 1500mm x 1500mm

Specifications

Capacity Options 100kg, 150kg, 300kg, 600kg, 1000kg, 1500kg, 2000kg, 3000kg
Construction 304 grade stainless steel with ultra smooth finish. Seamless frame with 5mm top plate, laminated base and a mobile kit to lift scale for easy manoeuvrability
Finish Professional - dirt trap free - ultra smooth processed finish
Loadcells 4 off Flintec OIML approved IP69 rated loadcells
Cable 5m of high quality cable with steel armoured braiding
Feet Stainless steel mounting feet
Junction Box Stainless steel sealed junction box and summing board
Ramp Supplied with one stainless ramp
