Stainless Steel Platform Scale

The UK-made VWS stainless steel platform scale is renowned for its impressive design and premium quality construction. The VWS range come with a 2 year manufacturer's warranty and are amongst the most reliable and durable platform scales available.

All platform scales are designed for full high pressure hygienic washdown and feature OIML approved IP69K loadcells and a sealed stainless junction box. High quality design and components ensure accurate and reliable weighing performance in the harshest of environments.

The VWS range of platform scales are built to order in the UK and as such every model can be customised if required to meet specific project requirements such as custom dimensions, extra high or low capacities, removeable top plates, access ramps or pit mounting.

BACK
  • 2 year warranty
  • UK made to the highest quality standards
  • Standard or high capacity heavy duty design
  • Professional bead blasted finish
  • IP69K rated, OIML approved loadcells
  • Free standing, pit mounted or with up to 4 ramps
  • Fully customisable - size, finish, capacity
  • Various standard sizes and capacities
  • Optional ATEX loadcells and J-Box
  • Custom sizes and capacities available

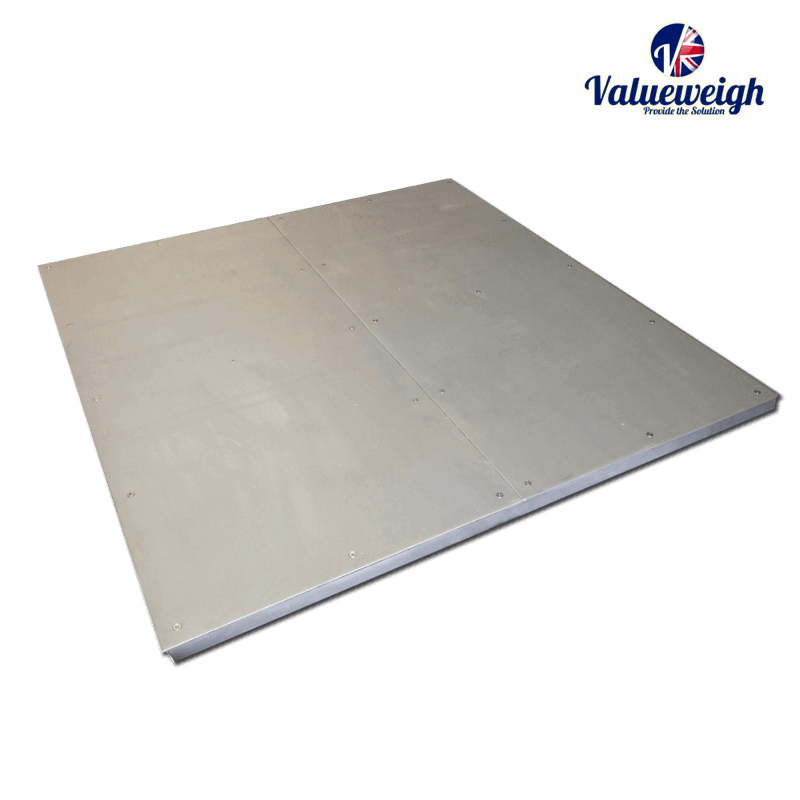

Stainless steel, high capacity platform scale

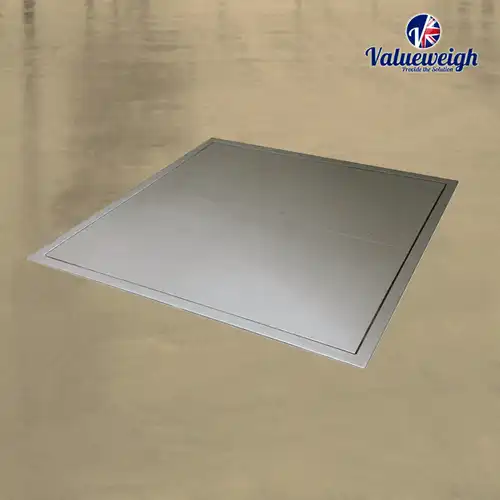

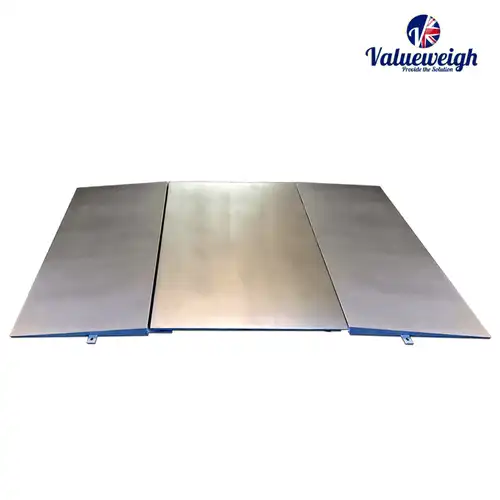

Reliable and durable, stainless, high capacity platform scale Platform scale with access ramps or pit mounting Stainless, high capacity platform scale with access ramps Platform scale with access ramps Stainless steel pit-mounted platform scale Built to order, customisable stainless platform scale

Stainless Steel Platform Scale Models

VWS Model VWHDS Model Dimensions *
VWS600 - 600mm x 600mm
VWS800 - 800mm x 800mm
VWS1010 VWHDS1010 1000mm x 1000mm
VWS1210 VWHDS1210 1250mm x 1000mm
VWS1212 VWHDS1212 1250mm x 1250mm
VWS1512 VWHDS1512 1500mm x 1250mm
VWS1515 VWHDS1515 1500mm x 1500mm
- VWHDS1812 1800mm x 1250mm
- VWHDS1815 1800mm x 1500mm
* Other custom dimensions available on request

Specifications

Capacity Options VWS: 150kg, 300kg, 600kg, 1000kg, 1500kg, 2000kg, 3000kg
VWHDS: 600kg, 1000kg, 2000kg, 3000kg, 5,000kg
(Higher capacity and other capacity options available on request)
Platform Height VWS: Approx. 80mm to Weighing Area
VWHDS: Approx. 130mm to Weighing Area
Construction 304 grade stainless steel with smooth top plate (durbar optional)
VWS: 100 x 50 x 4 rectangular box section with 5mm top plate
VWHDS: 100 x 50 x 4 PFC rectangular box section on-side
Finish Professional glass bead blast finish
Loadcells 4 off Flintec OIML approved IP69 rated loadcells
Cable 5m of high quality cable with steel armoured braiding
Feet Food grade height adjustable stainless rubber based mounting feet
Junction Box Stainless steel sealed junction box and summing board
