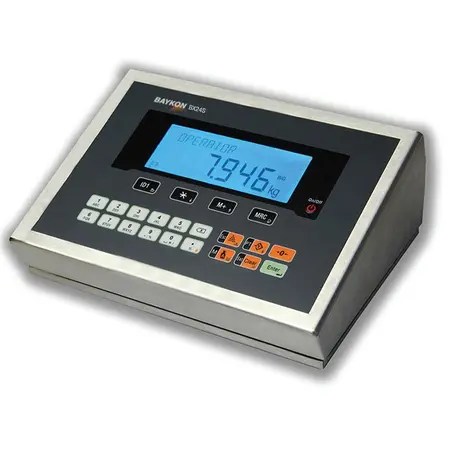

Baykon BX24S Weight Indicator
Baykon BX24S - OIML approved with a robust IP67 stainless steel housing. High quality weight indicator, providing reliable and accurate performance. Multi-functional, ideal for applications including checkweighing and dynamic weighing of moving loads.
Baykon BX24S Weight Indicator Details
Details
- OIML Approved
- Colour changing display for checkweighing and Bargraph for tracking gross weight
- Powerful setup and diagnostic features with live mV readings, peak loads, history, logs, built in hardware tests etc
- eCal for calibration with or without weights
- Multi operation modes including Checkweighing, Filling, Labelling Totalising, Counting, Livestock / In-motion
- Load labels forms from standard printer design software with 1 click
Technical Data
- IP67 stainless steel housing with alphanumeric keypad
- 22mm 6 Digit multi colour LCD Display
- 2 x RS232/ RS485 and 1 USB port as standard
- Analogue Output (0-20mA, 4-20mA, 0-5V or 0-10V) (Optional)
Suitable Applications
The Baykon BX24S is suitable for platform scales, bench scales and basic industrial weighing systems. The extensive connectivity options make it ideal for integration with PLCs, automated systems, and PC-based data logging applications. A reliable, cost-effective solution for straightforward weighing requirements.
Contact Midweigh for pricing and technical specifications. We provide full support including supply, programming guidance and installation advice for Cardinal and Baykon weighing indicators.
