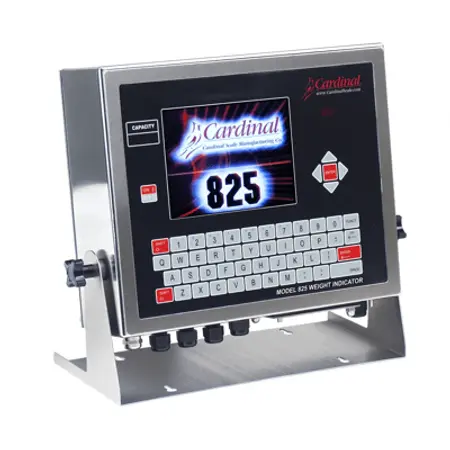

Cardinal 825 Spectrum Weight Indicator
The Cardinal 825 Spectrum is a versatile, IP66-rated and OIML approved dynamic weight indicator designed for complex, multi-scale industrial applications. With a full fleet management program built in and with networking capability, making it ideal for truck scales, tank farms, checkweighing and batching.
Cardinal 825 Spectrum Weight Indicator Details
Details
- OIML Approved
- IP66 rated with Stainless Steel housing
- QWERTY keypad
- Interactive Touchscreen
- Built in USB and Ethernet Port
- Full Fleet Management program built in
- Extensive truck/ID Storage Reports easily shared with a PC
- Networking capability
Technical Data
- IP66 rated, Stainless Steel housing
- Enclosure Size: W 304mm x H 249mm x D 100mm
- Display Size: 133mm x 102mm
- 8 Digital I/O (4 Input, 4 Output)
- 3 Serial Ports (RS232/RS422)
- 64 MB User Memory
- 10 Option Slots
- Up to 8 GB USB Memory Storage
- Ethernet Connection (TCP/IP or EIP)
- USB Connection (2x USB-A, 1x USB-B)
- Optional 8 Programmable I/Os
- 2 Speedy 32 Bit Coldfire® Processors
Suitable Applications
The Cardinal 825 Spectrum is suitable for platform scales, bench scales and basic industrial weighing systems. The extensive connectivity options make it ideal for integration with PLCs, automated systems, and PC-based data logging applications. A reliable, cost-effective solution for straightforward weighing requirements.
Contact Midweigh for pricing and technical specifications. We provide full support including supply, programming guidance and installation advice for Cardinal and Baykon weighing indicators.
